60 seconds delay lock (CB7231E)

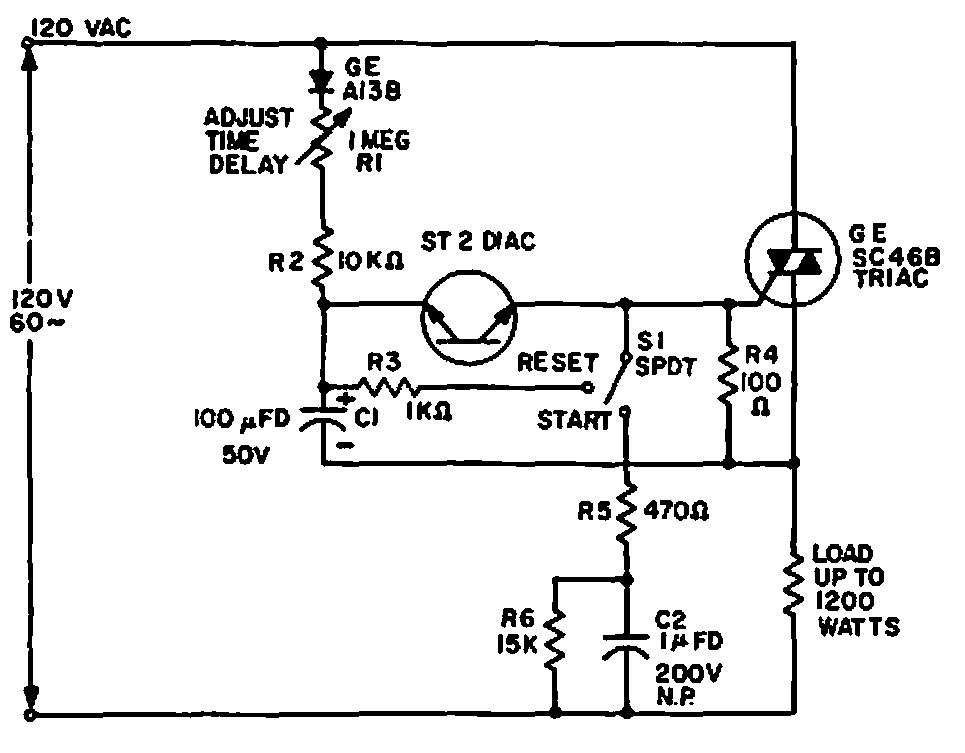

This General Electric circuit triggers on after 60 seconds. The circuit is from 1967 but can be implemented with current components.
