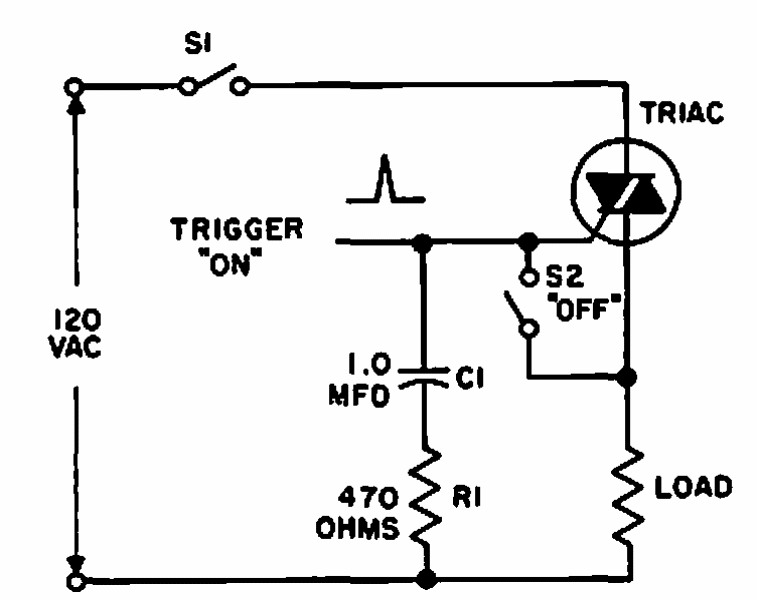

Basic lock for triac (CB7244E)

Details
Written by: Newton C. Braga



      This circuit was found in General Electric documentation from 1966. The circuit is suitable for any triac. It can also operate with other mains voltages.
