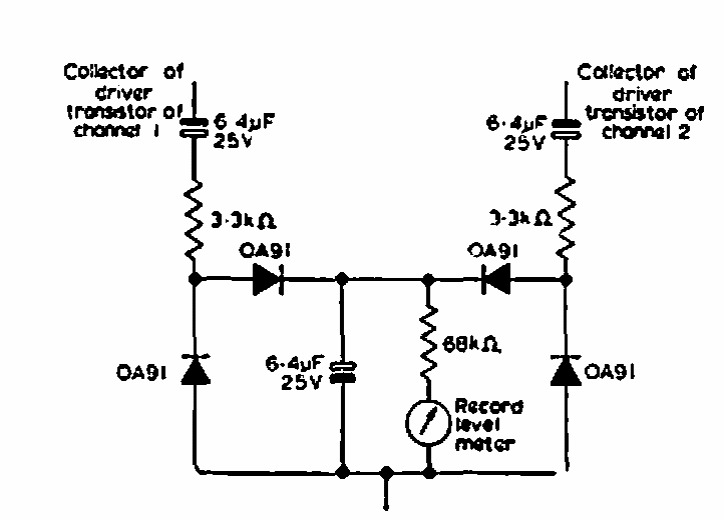

Balance indicator for stereo (CB7309E)

Details
Written by: Newton C. Braga



     This is one of the many versions of this type of indicator that the reader can find on our website. This is from Mullard's 1969 documentation. The indicator is 95 uA (100 uA).
