Field intensity meter (CB7365E)

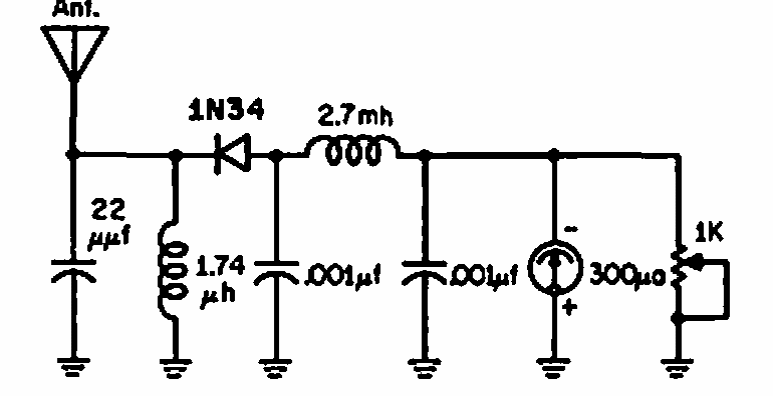

Found in a 1966 publication, this circuit is a simple version of a field strength meter. The diode is a general-purpose germanium type.

| Clique na imagem para ampliar |

9.5 MHz Tunable Crystal Oscillator (CB13865E)
This circuit can be tuned in a 100 kHz band around the frequency of the crystal. The transistor can be...
Digital potentiometer 4046 (CB25242E)
The figure shows how to obtain a digitally programmed resistance using the 4066. The circuit is...
Old Transistor Oscillator (2) (CB13955E)
This audio oscillator has its frequency determined by C1, C2 and the inductor. The inductor can be...
