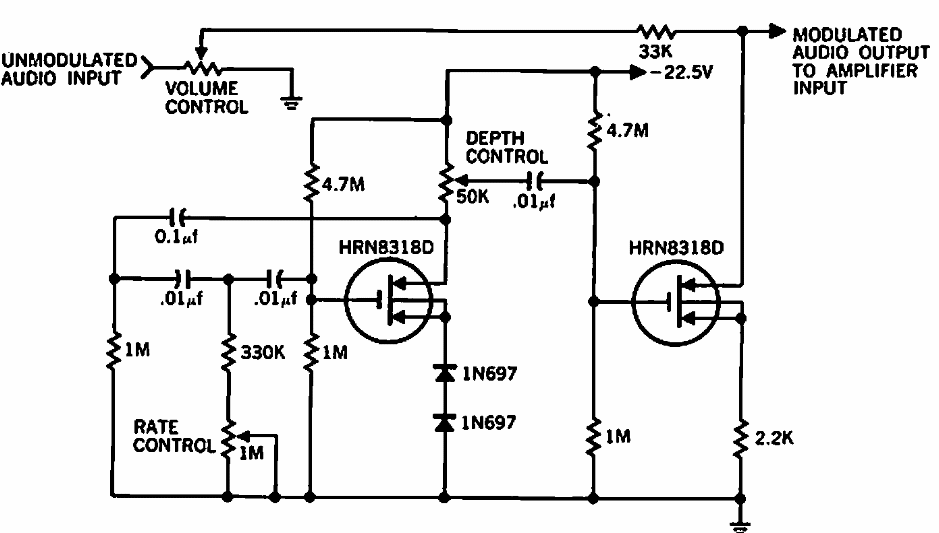

Tremolo (CB6720E)

This 1968 circuit makes use of MOSFETs of the time. The circuit can be mounted based on modern common FETs. Observe the high supply voltage.
