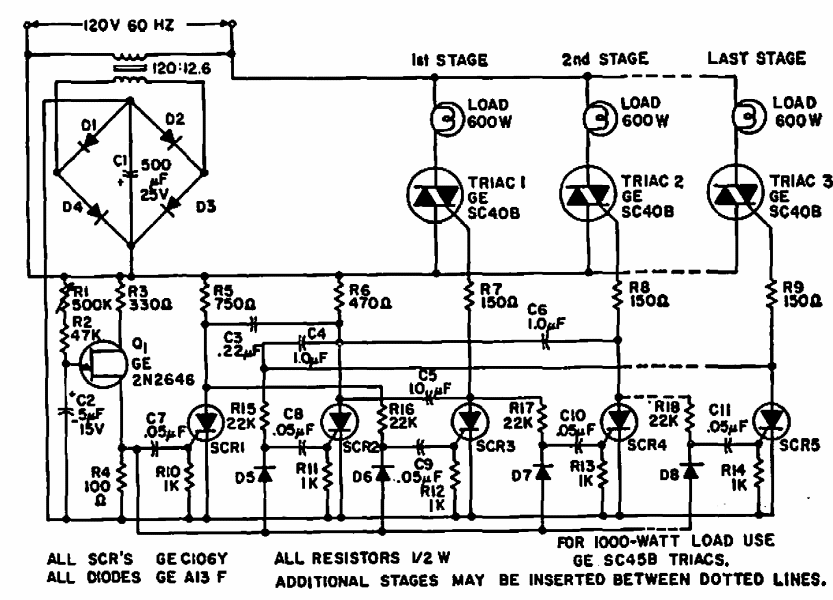

Sequential without integrated (CB6768E)

This circuit is from a 1967 publication and applies to incandescent lamps up to 600 W. Triacs must be fitted with heat sinks.
