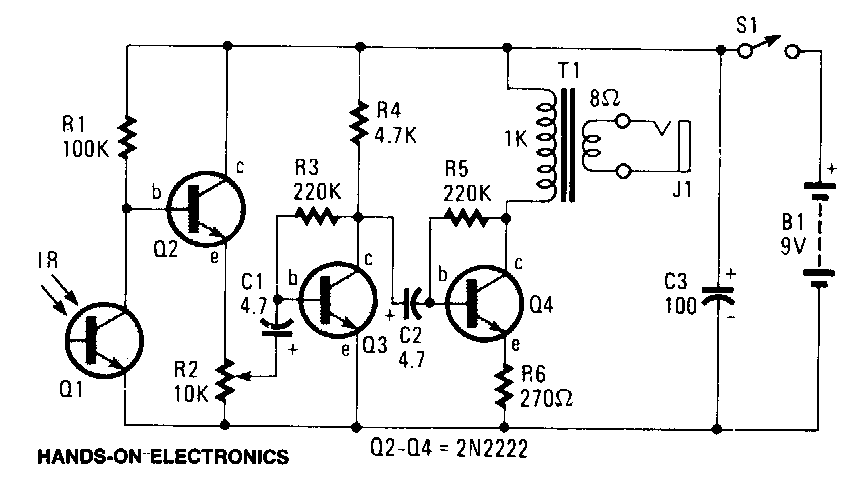

Found in old documentation, this circuit uses components that are still common on the market. The transformer can be eliminated if a high impedance phone is used. The phototransistor can be of any type.
| Clique na imagem para ampliar |
Infrared receiver (CB6836E)
