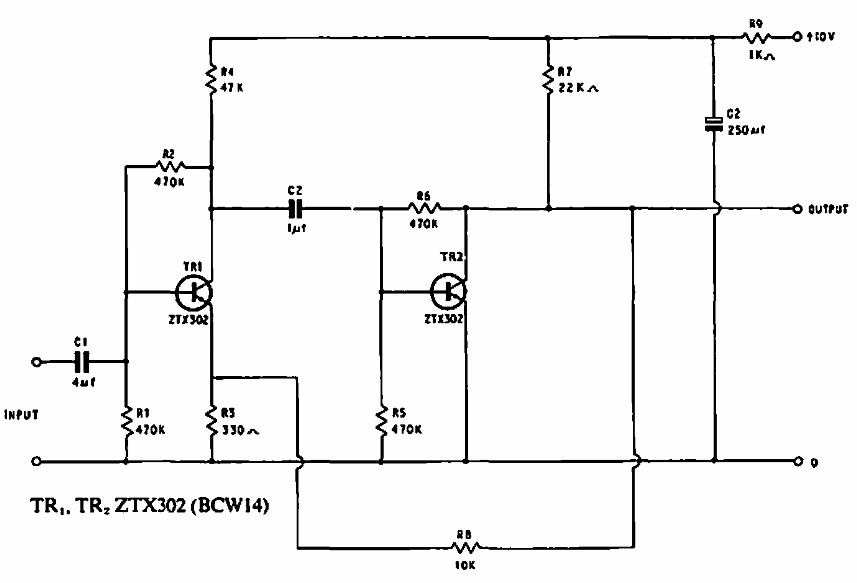

Preamplifier for millivoltmeter (CB7342E)

Found in an English publication in 1969, this circuit has a 600 kHz pass band. Ferranti's transistors support modern equivalents.
