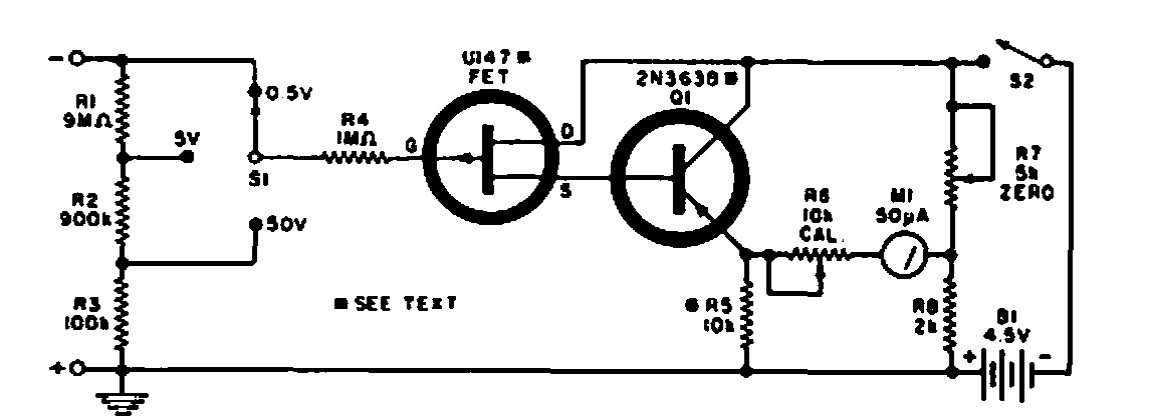

This circuit was found in a 1967 Electronics World. We can design it with a BF245 for the FET and a BC558 for the bipolar transistor. The circuit has 3 scales and a 10 M ohm input resistance.
