Micropower Clock (CB6504E)

Details
Written by: Newton C. Braga

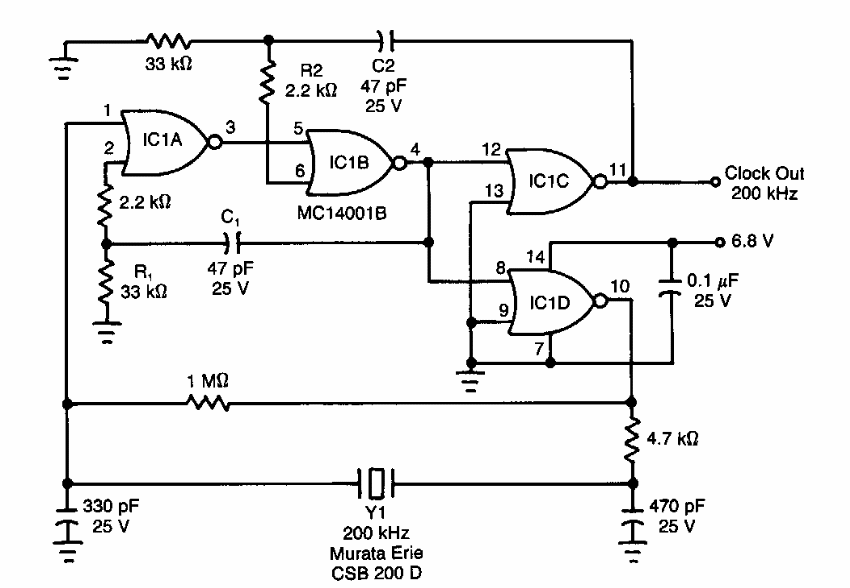

     This 200 kHz oscillator was found on a 90's EDN. It consumes only 2.8 mW and has CMOS compatible output. CMOS power pins are not indicated.
