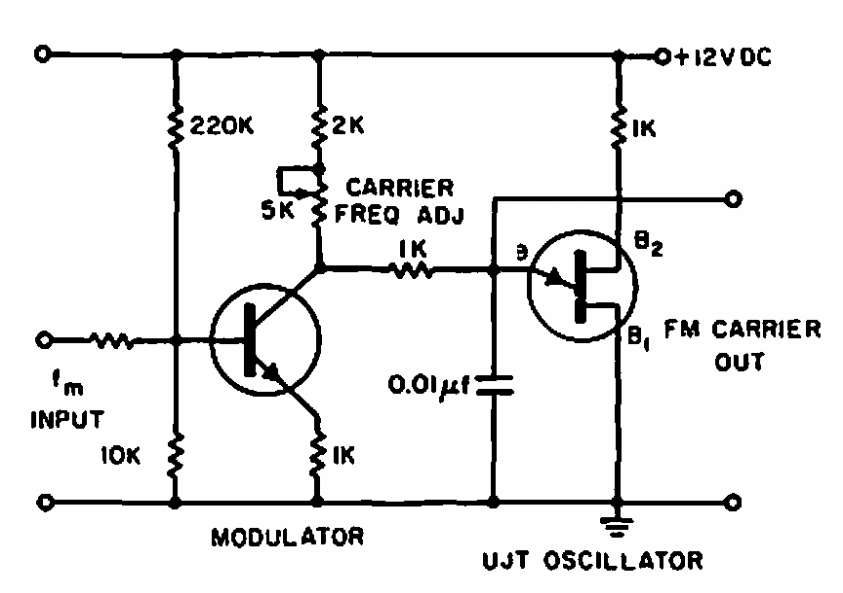

This oscillator produces a modulated signal using a unijunction transistor. We found it in an American documentation from 1965. The circuit modulates in frequency the generated signal.
| Clique na imagem para ampliar |
1 kHz oscillator (CB6909E)
