16 kV voltage source (CB6931E)

Details
Written by: Newton C. Braga

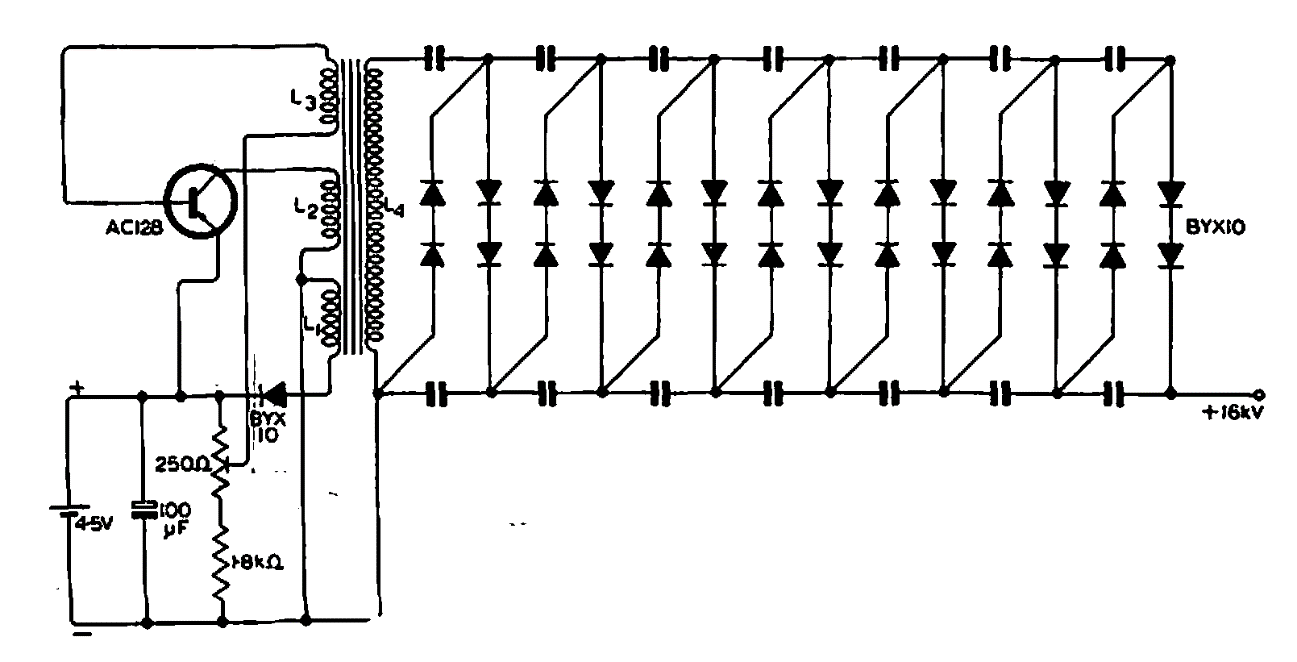

     This circuit consists of an inverter powered by only 4.5 V. The circuit is from a 1967 Mullard documentation. No information was provided on the transformer winding. Capacitors can be 1.5 nF x 3 kV.




| Clique na imagem para ampliar |
