Active cycle meter (CB7059E)

Details
Written by: Newton C. Braga

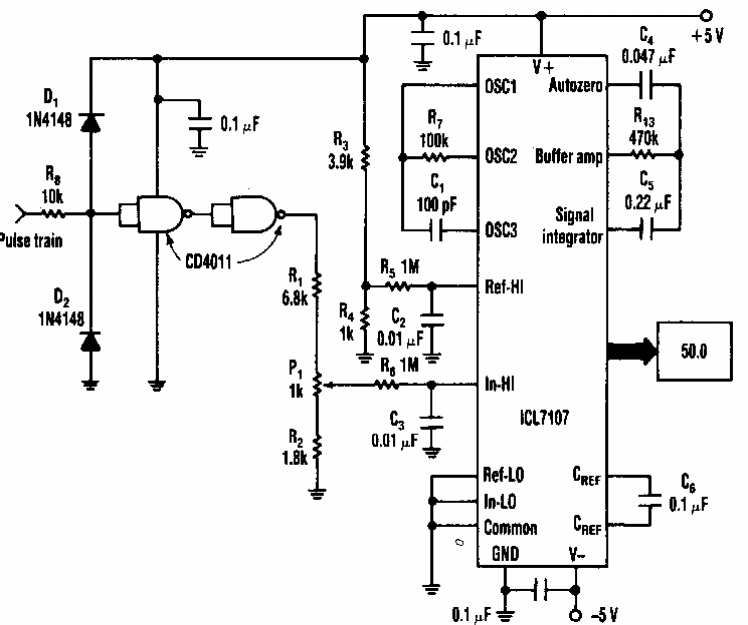

     Found in an 80's Electronic Design, this circuit is based on the ICL7107 which is not an easy component to obtain today. The circuit is compatible with TTL and CMOS.




| Clique na imagem para ampliar |
