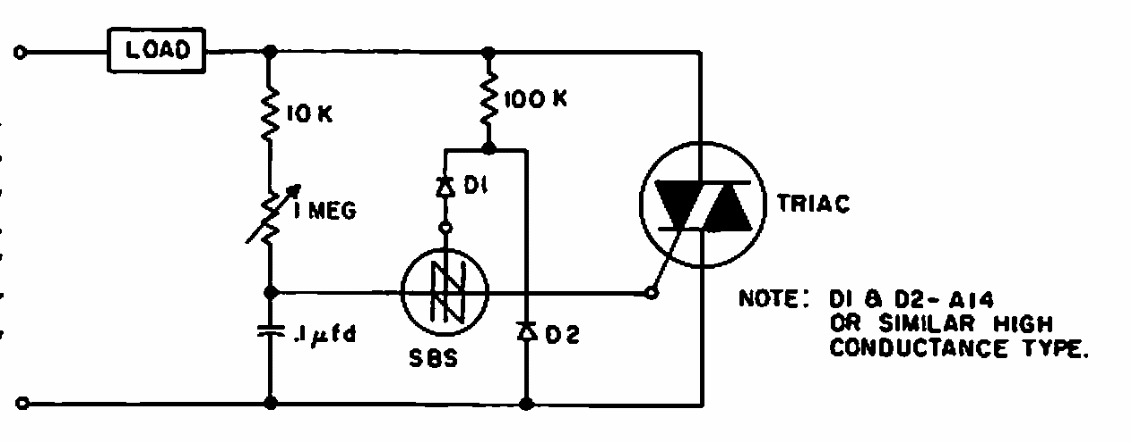

Dimmer with triac and SBS (CB7212E)

This dimmer for 12 V incandescent lamps was found in a 1966 General Electric documentation. The circuit has a SBS trigger programmation.

| Clique na imagem para ampliar |
