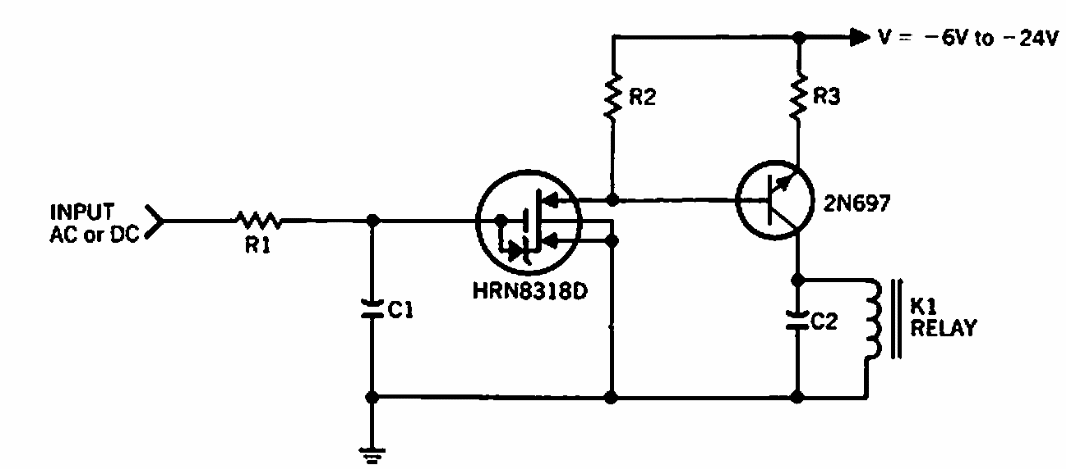

This vox was found in Hughes documentation from 1968. The circuit uses components from the era. A join FET can be used. R1 has typical values from 100k to 1 M and R2 has 10k. R3 has from 47 ohm to 100 ohm depending on the supply and relay voltage.
| Clique na imagem para ampliar |
