Adjustable Constant Current Source (CB6621E)

Details
Written by: Newton C. Braga

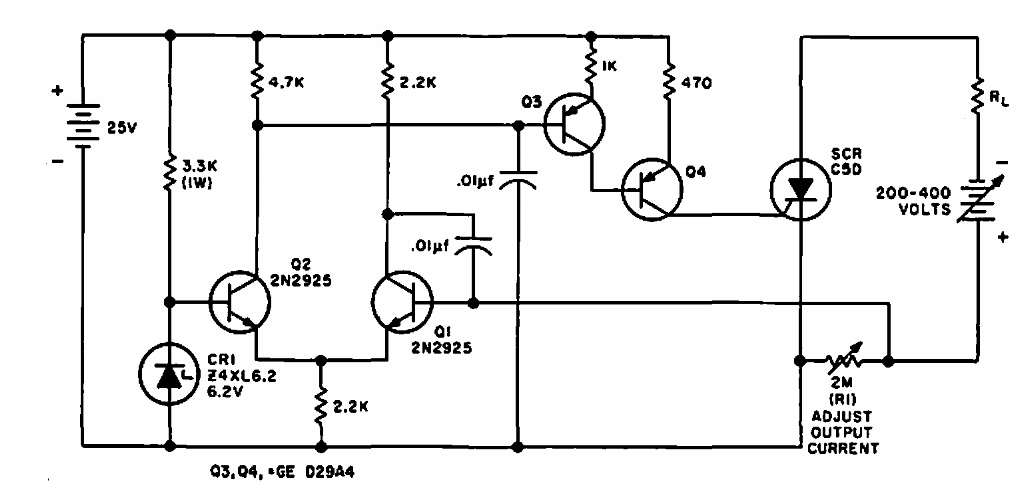

    This constant current source for high voltage loads was obtained from a 1967 General Electric documentation. The components are of the time, but allow equivalents.




| Clique na imagem para ampliar |
