Stereo VU meter (CB7007E)

Details
Written by: Newton C. Braga

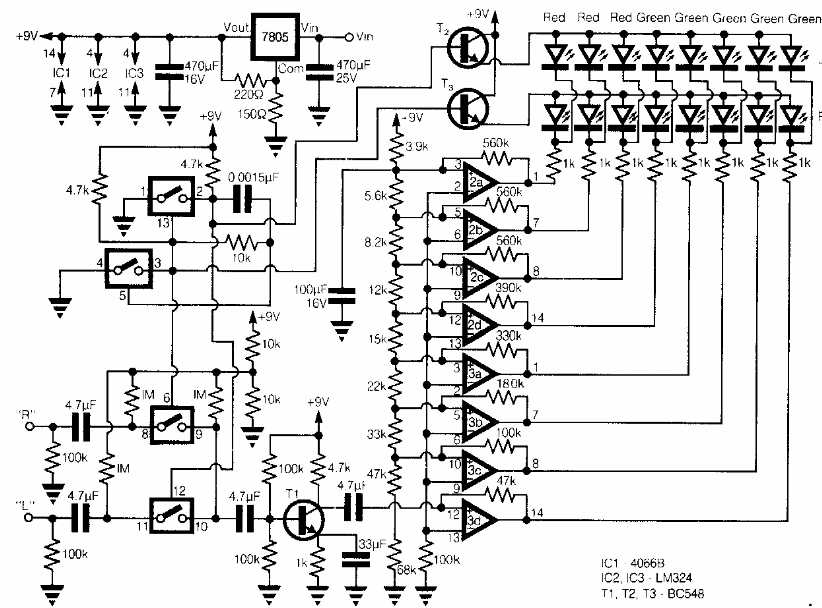

    Found in Electronics Engineering, this sophisticated circuit makes use of components that are still common today. The circuit is connected to the output of the stereo amplifier.
