Intelligent battery charger (CB7130E)

Details
Written by: Newton C. Braga

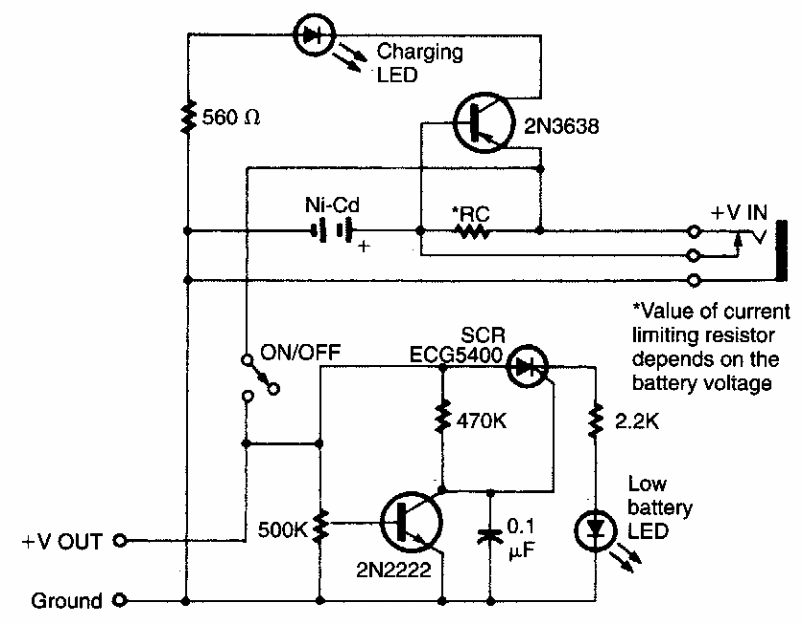

    Suggested by Radio Electronics from the 90s, this circuit is suitable for NiCAd batteries with a low battery indicator and a charge indicator.
