555 Negative Output Monostable (CB13484E)

Details
Written by: Newton C. Braga

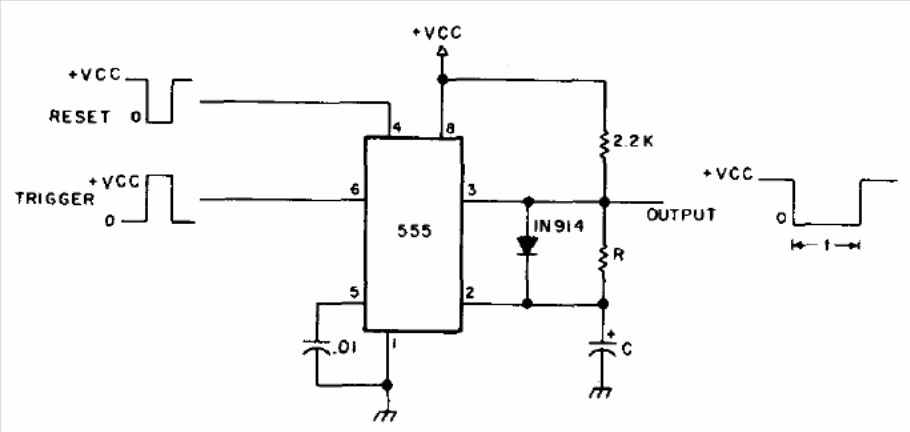

We found this configuration in a 1978 publication for radio amateurs. The pulse duration is given by C and R of 2k2, approximately by the formula T = 1.1 x R x C. The circuit can be powered by voltages from 5 to 15 V.
