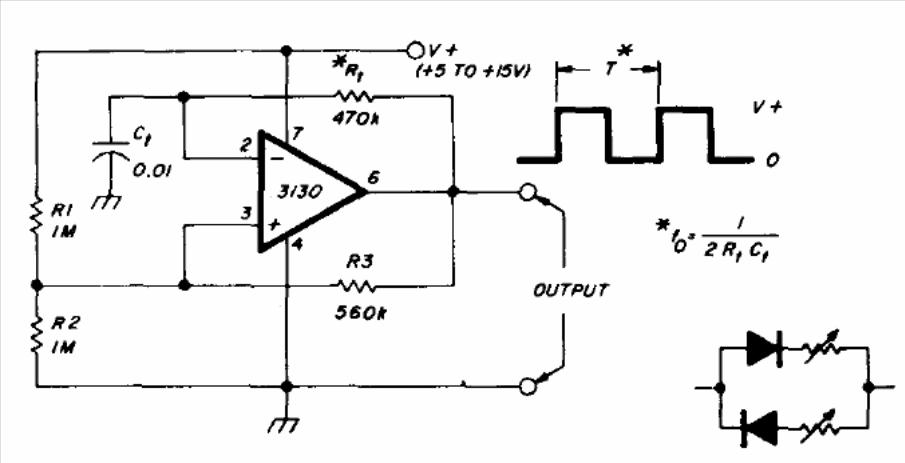

We found this oscillator in a 1978 amateur radio documentation. The circuit supports other operational amplifiers with FET. The feedback network formed by R1 can be replaced by the circuit with diodes and 1 M potentiometers to adjust the active cycle. The power supply does not have to be symmetrical.
| Clique na imagem para ampliar |
