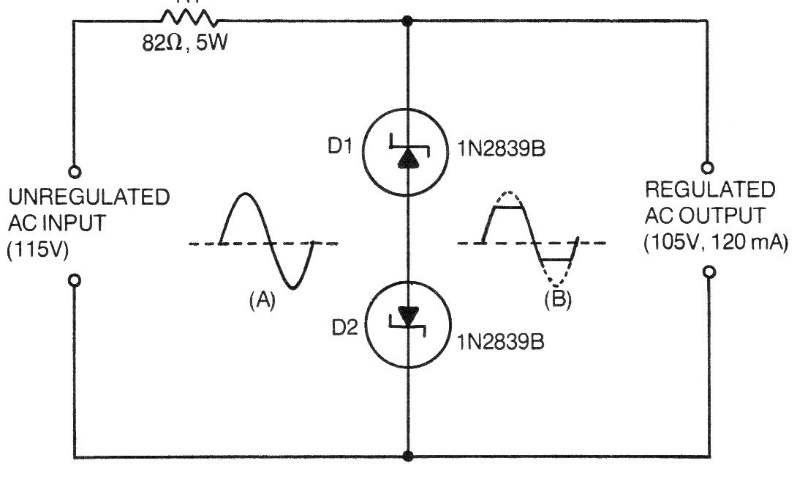

We found this conventional reaper configuration using zeners diodes in an American documentation from 1976. The diodes determine the cut-off of the sinusoidal signal, which in this case has a peak of 105 V with the use of diodes for this voltage. The maximum current is 120 mA and the diodes are 4 W or more. The circuit can be adapted to cut any other voltage.
