100 MHz Crystal Oscillator (CB13560E)

Details
Written by: Newton C. Braga



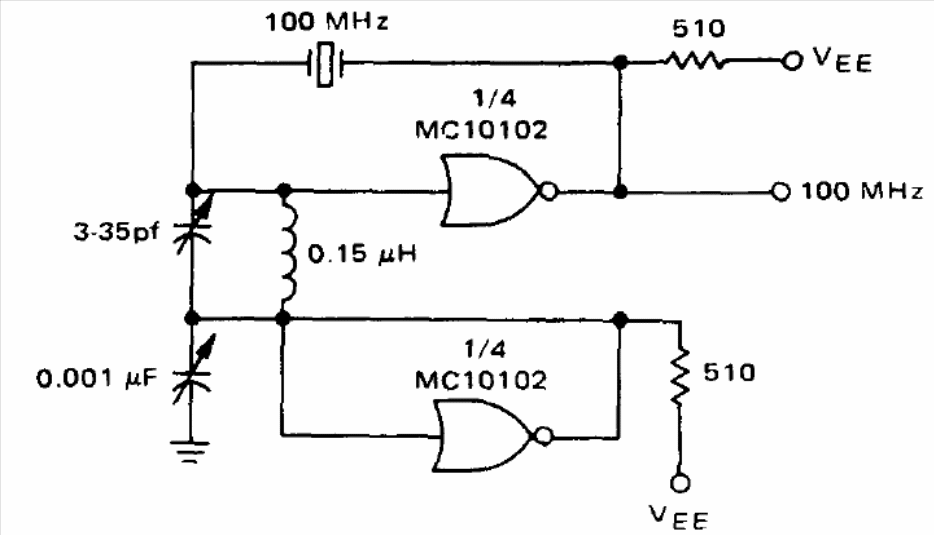

This TTL circuit generates a 100 MHz signal for digital instruments. The CI is not easy to obtain, being of the high speed MECL type. The circuit is from a 1972 Motorola manual.




| Clique na imagem para ampliar |
