Notch Filter (CB13590E)

Details
Written by: Newton C. Braga

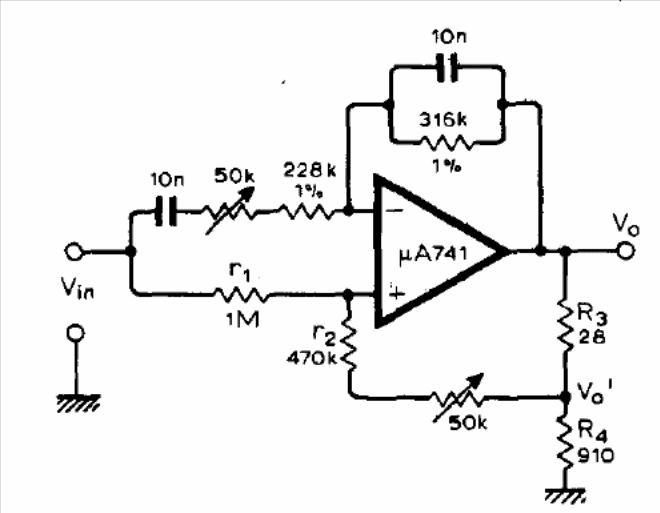

This 50 Hz rejector or notch filter was found in a 1975 documentation. Other frequencies can be obtained by changing components. The filter uses a Wien network and must use a symmetrical power supply.




| Clique na imagem para ampliar |
