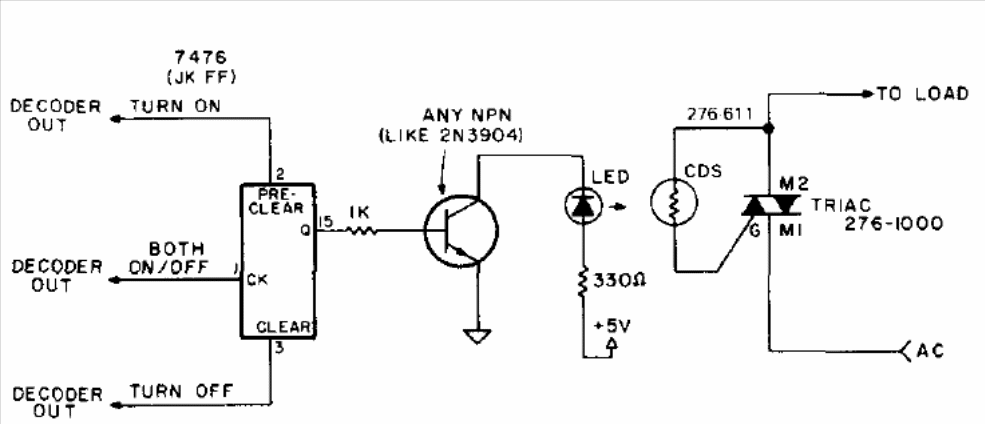

We found this circuit in an American documentation from 1977. In it we have the way to use an optical coupler to control a triac from TTL signals. The triac can be a more modern type of the TIC series and the integrated TTL must be powered with 5 V. The high voltage circuit is isolated from the TTL circuit.
