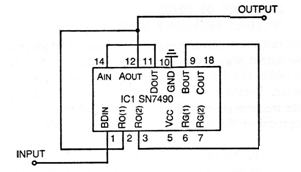

This is the normal configuration for dividing a TTL signal by 7. The 7490 can divide by other values. The circuit is from an old documentation from Texas Instruments that created the TTL and therefore uses an SN7490 CI, since the prefix SN was used by that company at the time. The input signals must be rectangular, and the output is also with an active cycle that is different from 50%.
