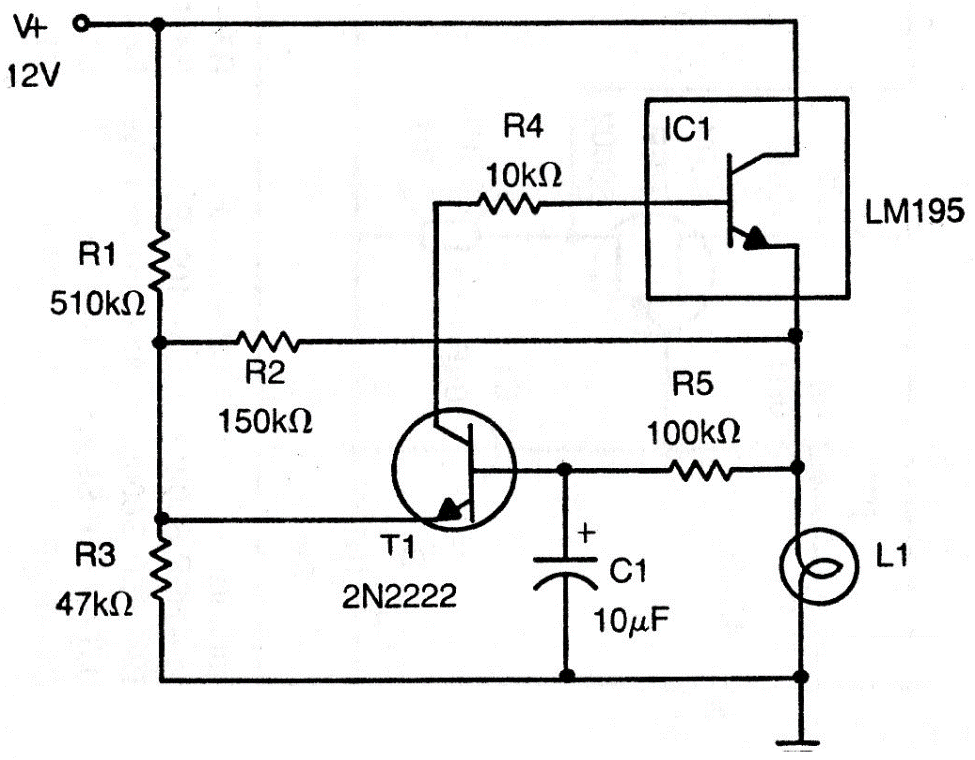

This circuit was found in an old American publication. It makes use of an integrated circuit consisting of a power transistor. We can elaborate the same configuration with a 1A Darlington or even a common transistor like the TIP31. The circuit is suitable for automotive use. The T1 transistor can also be a BC548.
