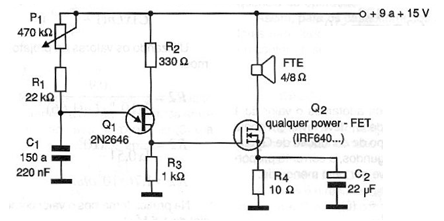

The circuit, shown in the figure, produces a good power audio tone, whose frequency is adjusted by the 470k ohms potentiometer. The speaker must be at least 5 W and one of the possible applications for this circuit is in alarm systems. The 10 ohms resistor can possibly be changed depending on the desired power.
