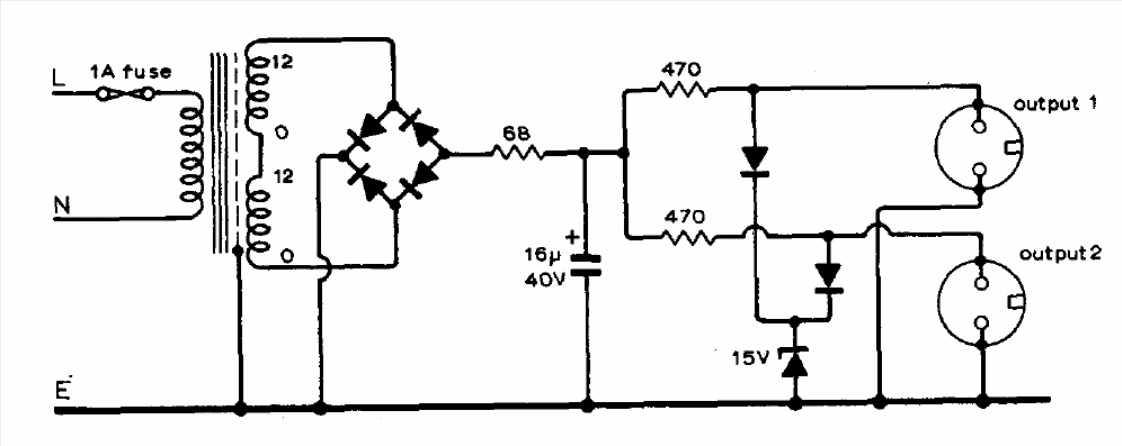

This charger provides a current of 20 mA under voltage of 9.6 V for charging batteries. Two batteries can be charged simultaneously. The circuit is from a 1974 publication. The diodes can be 1N4002 and the transformer has 100 mA or more of secondary current.
