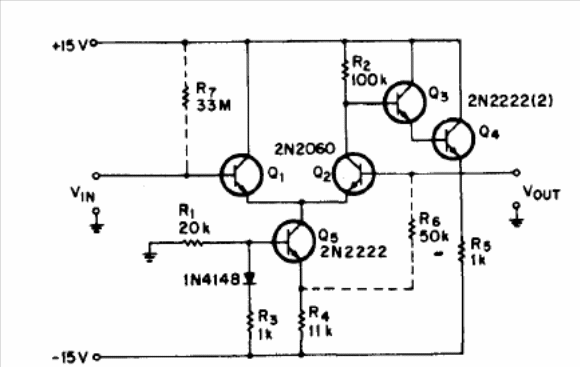

This circuit is from 1971 American documentation. Transistors are still common except for 2N2060 which can be a BC548. The circuit provides a gain of 0.9999 V / V with a gain of 1.5 Vpp. The input impedance is too high.
Precision Voltage Follower (CB13393E)
- Details
- Written by: Newton C. Braga
