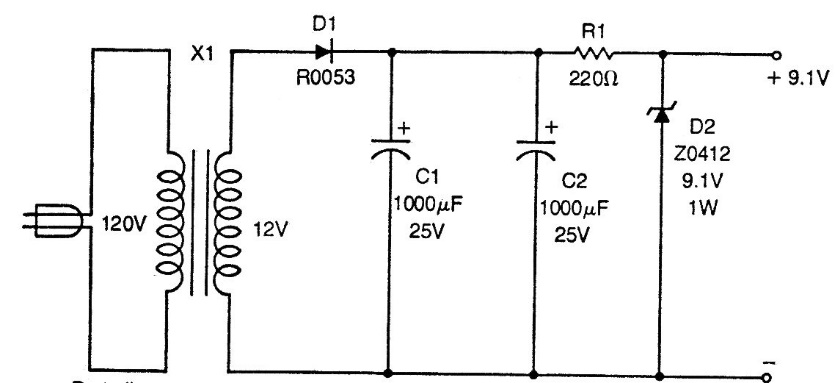

The maximum current of this circuit is 250 mA, its purpose being to replace 9 V batteries. Diode D1 can be 1N4002 and the zener of any type of 1 W. The circuit is from an old documentation from the 70s. The transformer has a secondary current of 250 mA or more.
