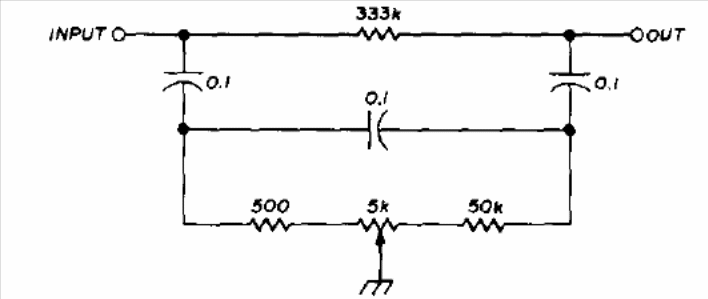

This circuit is from a 1975 amateur radio manual. The components can be approximated to the current standard values. The attenuation at 60 Hz is approximately 44 dB. The circuit tunes frequencies from 40 to 120 Hz.
| Clique na imagem para ampliar |
60 Hz Passive Tunable Filter (CB13447E)
- Details
- Written by: Newton C. Braga
