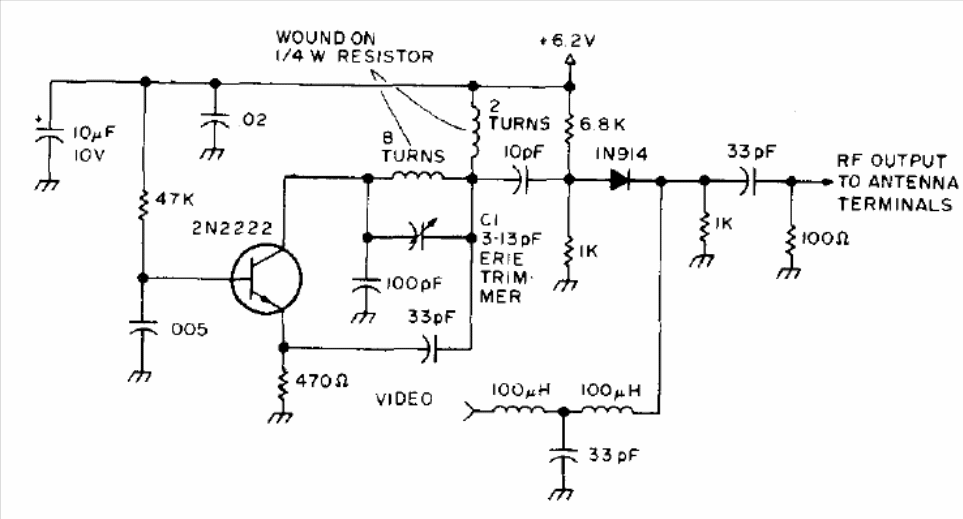

This oscillator is used to modulate video game signals or even small cameras so that they can be received on VHF televisions. The circuit is from a 1976 publication and the critical components are the coils. Capacitors must be ceramic.
| Clique na imagem para ampliar |
