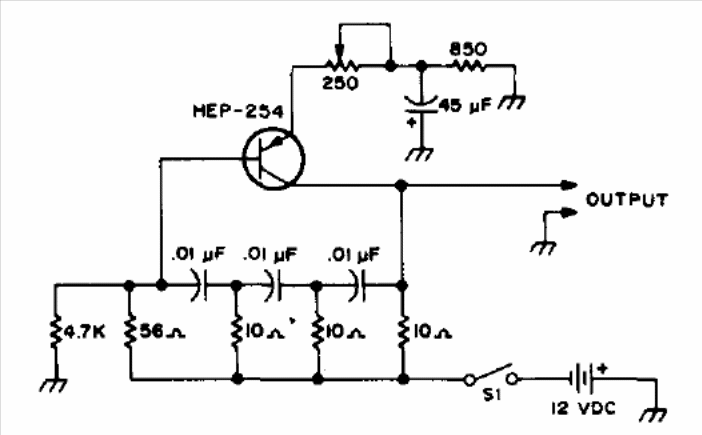

This circuit is from an old publication from 1977 and can be implemented with more modern transistors such as BC558. The circuit can also have the capacitors in the feedback network altered to generate signals from other frequencies.
