This circuit, which can be used as a shield for microcontrollers, provides 50% active cycle output depending on the programming done. The circuit is from 1977 documentation and must be powered by a voltage of 5 V.
| Clique na imagem para ampliar |

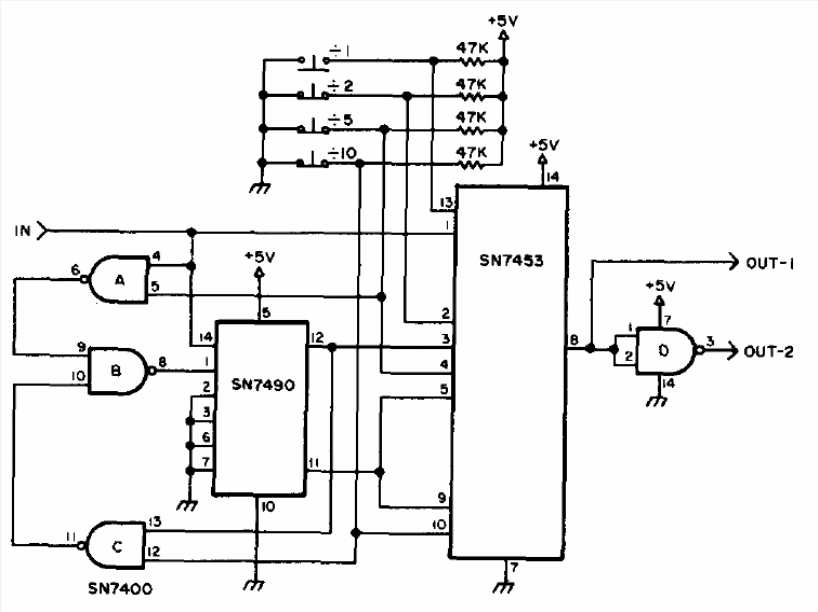

TTL divider by 1 2 5 or 10 (CB13733E)
