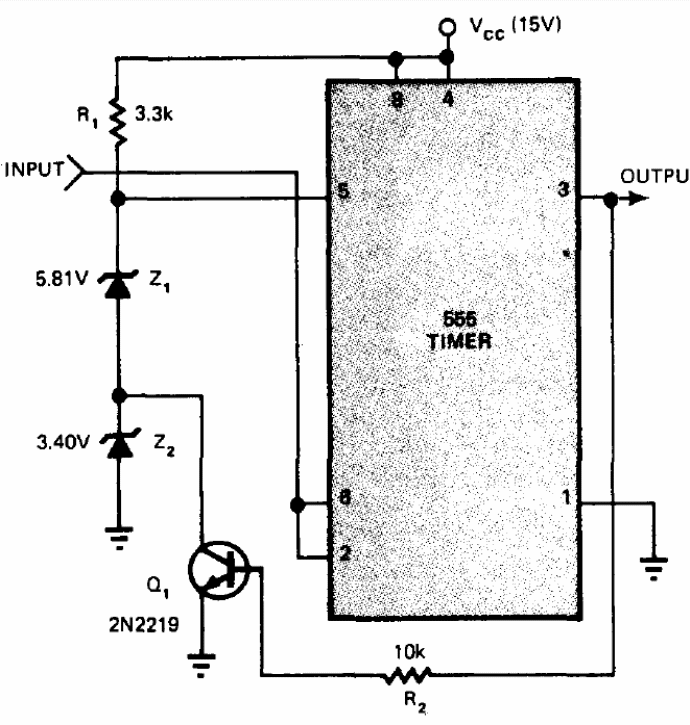

In the figure we have the way to use a 555 with hysteresis. The circuit is from old documentation and the transistor admits equivalents. The circuit is compatible with TTL and CMOS logic.
| Clique na imagem para ampliar |
Schmitt Trigger with Hysteresis 555 (CB13774E)
- Details
- Written by: Newton C. Braga
