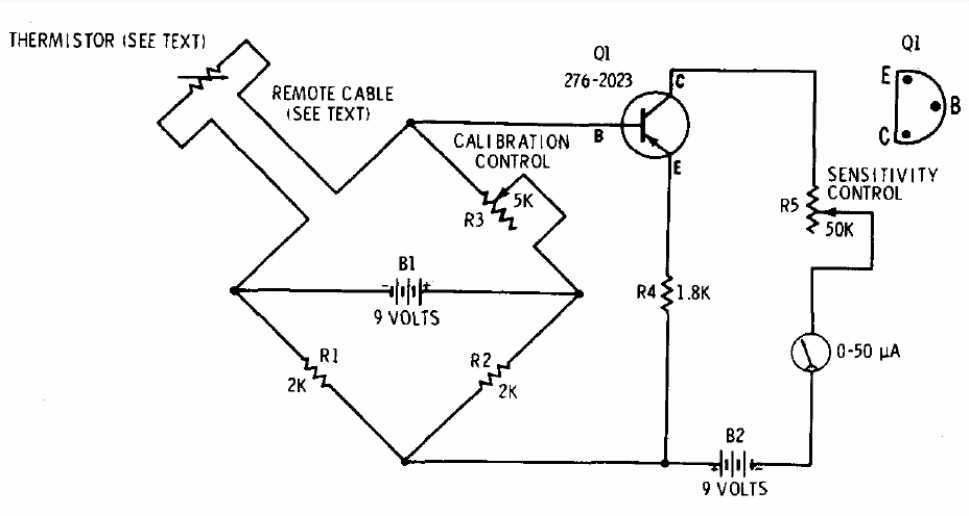

This circuit was obtained in a Radio Shack documentation from 1977. The sensor must have a resistance of the same order as the adjustment or calibration potentiometer, between 5k and 50k. The transistor can be a BC558.
