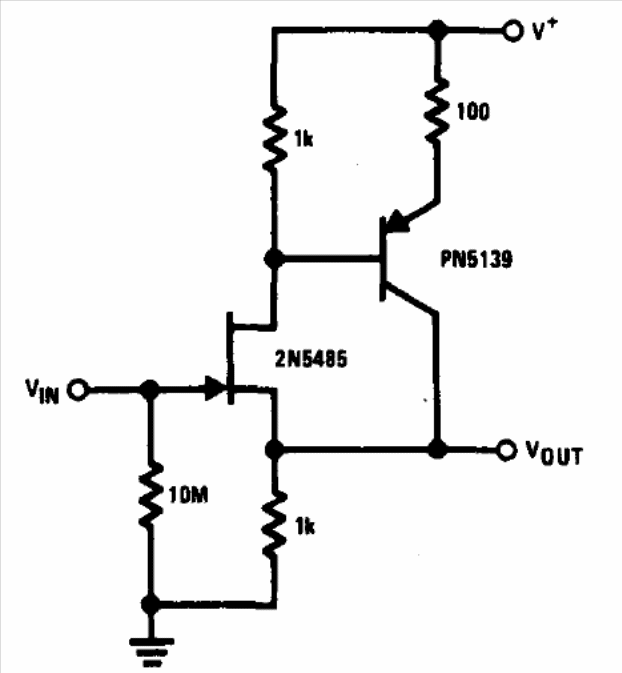

This circuit was found in the 1977 National Semiconductor FET Databook. The FET can be the BF245 and the bipolar transistor a BC558. The supply voltage must be between 5 and 15 V. The circuit amplifies signals up to a few megahertz.
Broadband Buffer (CB13645E)
- Details
- Written by: Newton C. Braga
