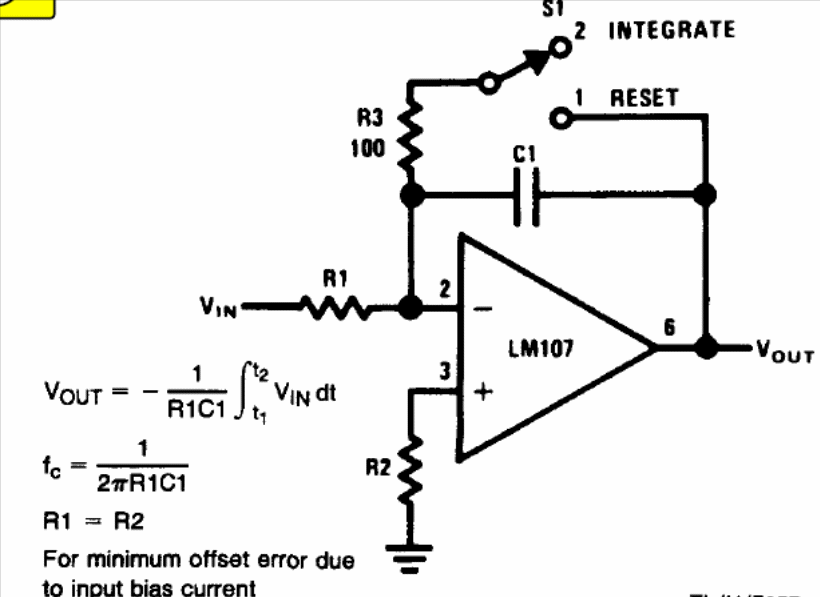

This circuit can be implemented with other operational amplifiers. The formulas for calculating the components are given next to the diagram. The circuit is from the 1994 National Semiconductor Linear Applications Handbook. The power supply must be symmetrical.
