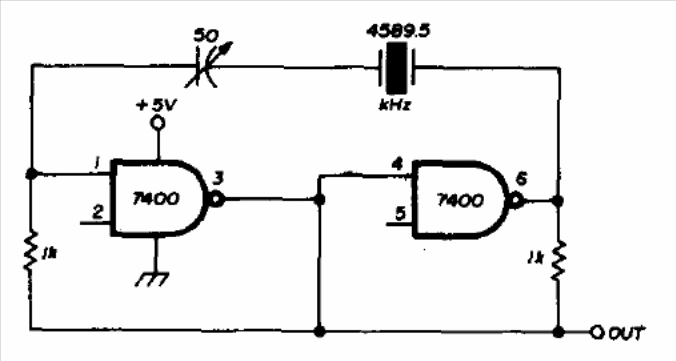

This TTL oscillator uses an old TV crystal, having been found in an American publication in 1976. Of course, the circuit will also work with crystals of other frequencies. The supply must be made with a voltage of 5 V. The consumption is low and for a higher speed, the crystal and the TTL must be exchanged for equivalent of faster families.
