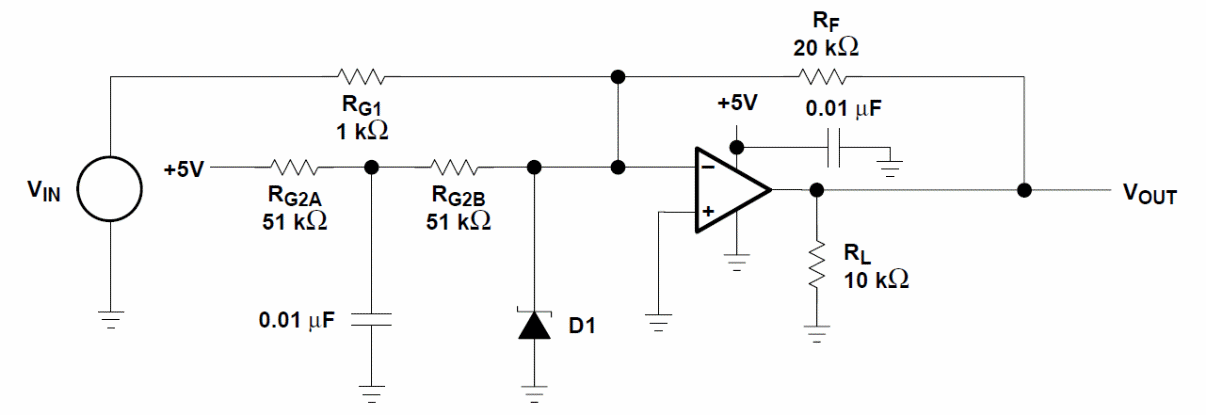

In the figure we have another configuration of inverter amplifier with gain 20 (in fact 19), suggested by Texas Instruments in technical documentation. Resistors Rf and Rg1 determine the gain. The output impedance is 10k and the circuit applies to Texas TL and TLC series amplifiers.
