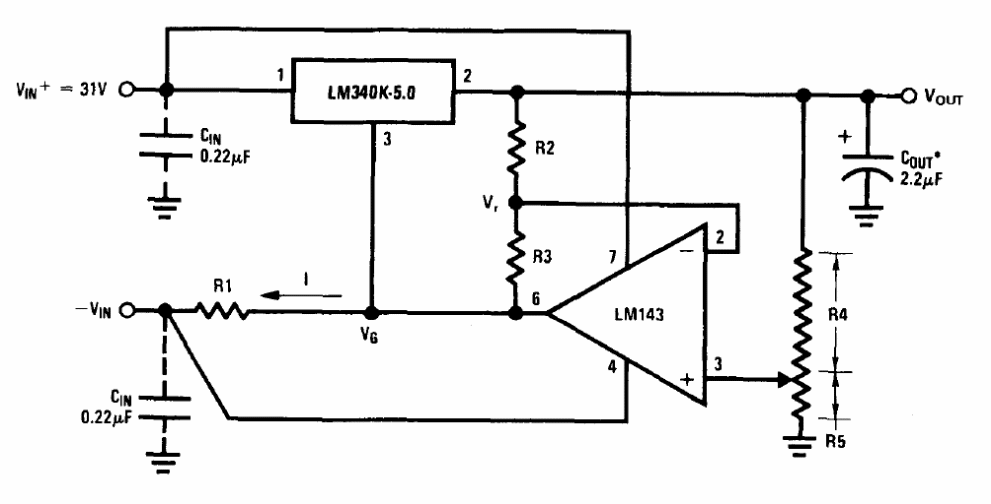

The circuit presented is from the Linear Applications Handbook of the National Semiconductor of 1994. The LM340 must be equipped with a heat radiator and R4 must be 10k with the voltage being adjusted by the ratio R4 and R5.
