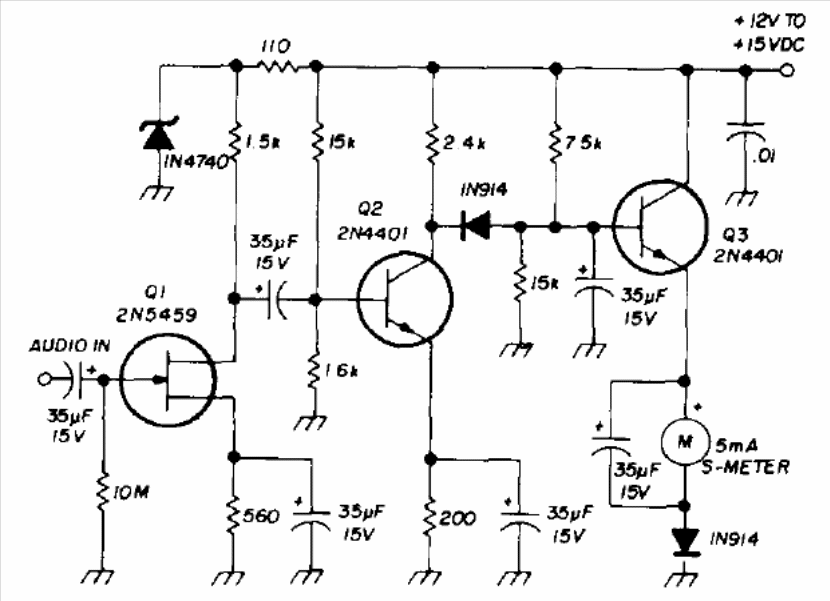

This signal strength meter (S-meter) was found in a 1975 amateur radio publication. We can use BC548 for bipolar and the field effect transistor can be BF245 or MPF102. The instrument is 5 mA full scale. The response is from 500 Hz to 10 kHz.
