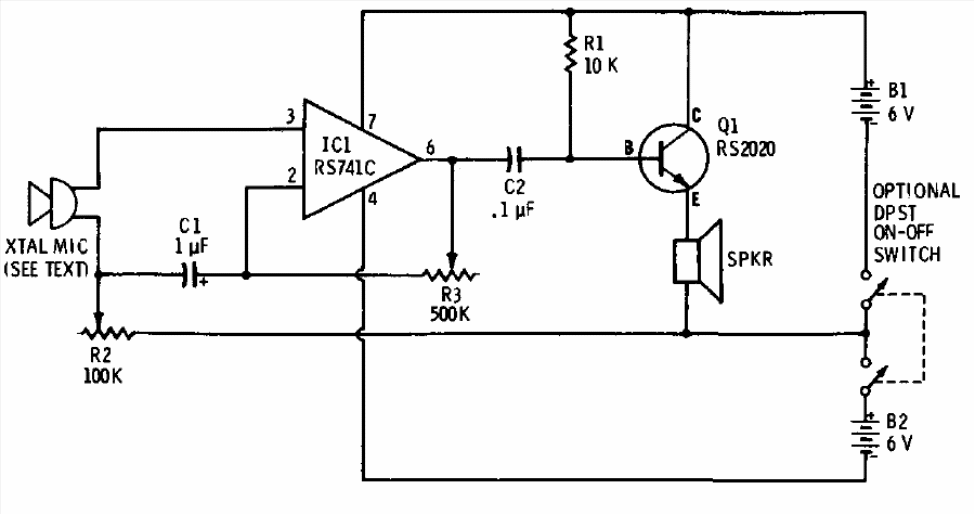

This experimental circuit was obtained in a Radio Shack documentation from 1977. The transistor can be the BD135 and the source, it can be 6 to 9 V symmetrical. R2 adjusts the gain and the microphone can be piezoelectric.
