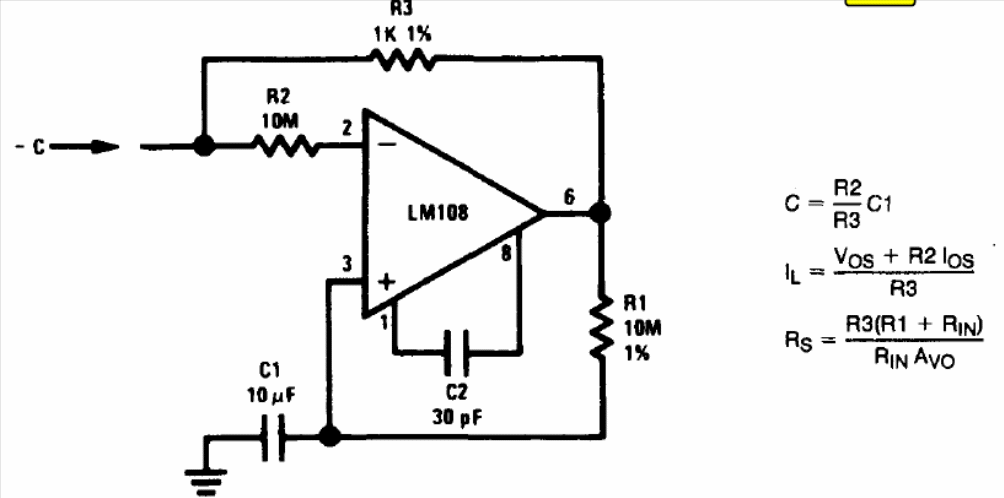

The circuit presented was obtained in the 1994 Linear Applications Handbook from National Semiconductor. We can implement the circuit with more modern equivalent operational amplifiers. In the diagram we have the formulas for calculating the components. The power supply must be symmetrical.
