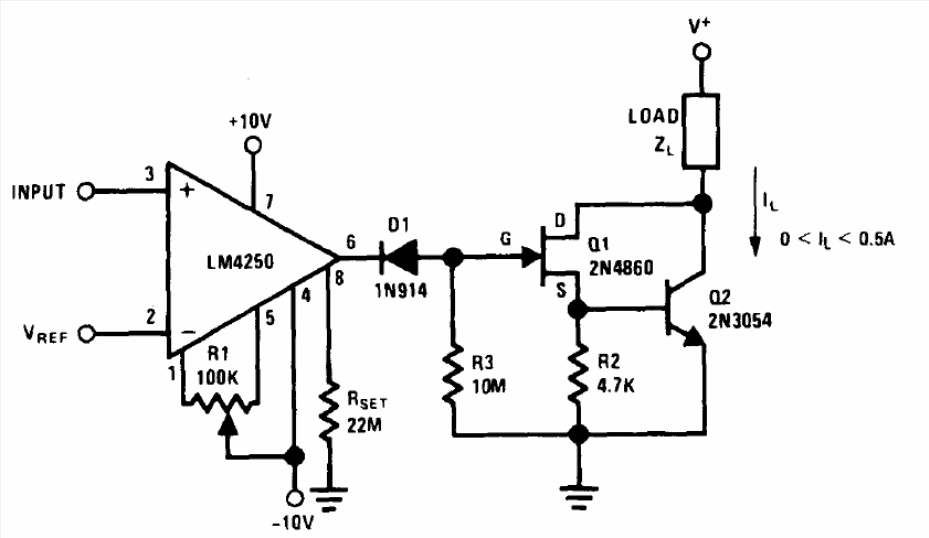

The circuit shown is from the National Semiconductor's Linear Applications Handbook. The CI is not very simple to obtain and the transistors admit equivalents. For Q1 a BF245 can be used and for Q2 a BD135. The V + source depends on the load.
