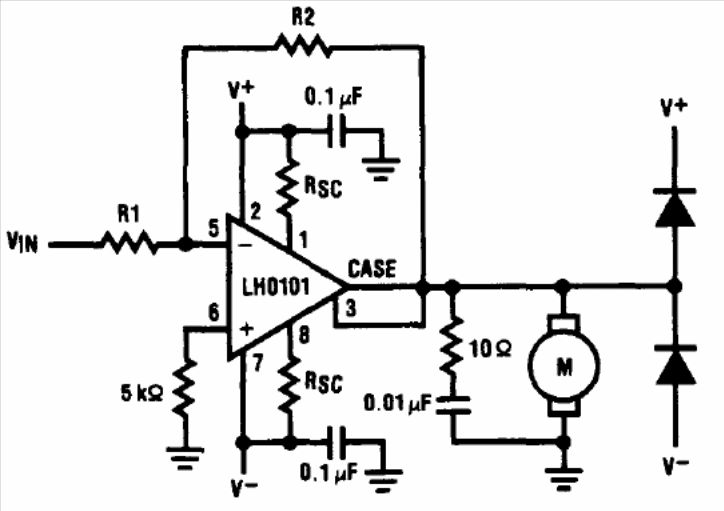

Servo Amplifier LH0101 (CB14353E)

National Semiconductor's LH0101 integrated circuit is not common today. The circuit was obtained from the 1994 Linear Applications Handbook.

| Clique na imagem para ampliar |
