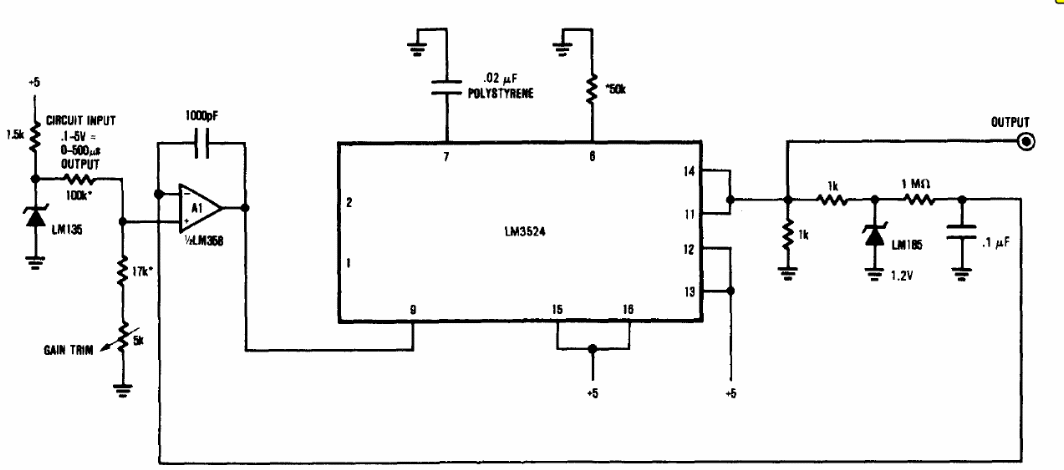

Temperature to Pulse Width Converter (CB14376E)

Details
Written by: Newton C. Braga



The circuit presented is based on the National Semiconductor's LM3524, a component not common today. The circuit is from the 1994 Linear Applications Handbook.
