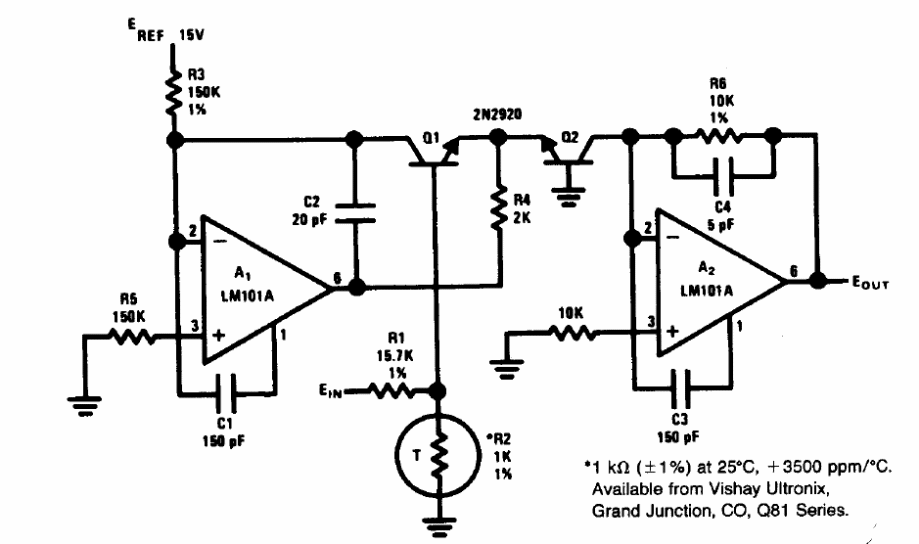

This circuit is from the 1994 Linear Applications Handbook by National Semiconductor. The circuit can be implemented with more modern components. In it we have a temperature compensation, and the power supply must be symmetrical.
| Clique na imagem para ampliar |
