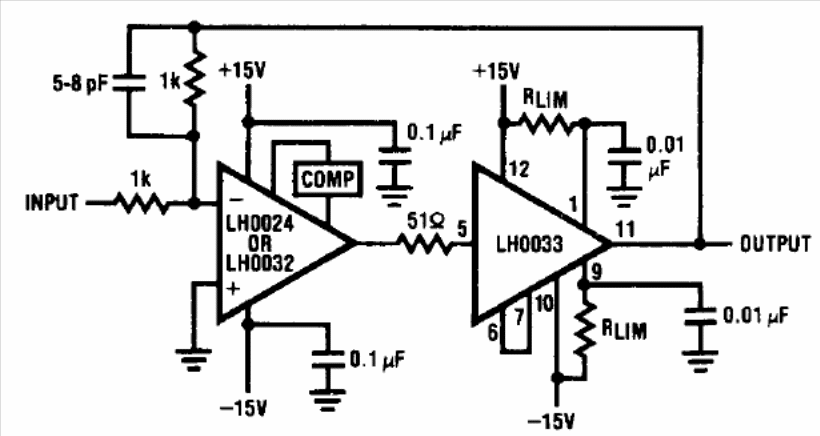

The circuit uses operations that are no longer common nowadays, as it is a configuration obtained in the Linear Applications Handbook of the National Semiconductor of 1994.
| Clique na imagem para ampliar |
100 mA Wide Range Operational (CB14352E)
- Details
- Written by: Newton C. Braga
