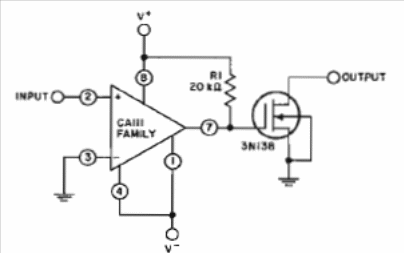

We found this configuration in a 1972 RCA linear integrated circuits manual. The transistor admits equivalent and the comparator with FET can be of a more modern type. The power supply must be symmetrical.
MOSFET Output Zero Crossing Detector (CB14052E)
- Details
- Written by: Newton C. Braga
